VRV/F INSTALLATIONS
Highly versatile DX (direct expansion) heat-pump systems
VRV (Variable Refrigerant Volume) and VRF (Variable Refrigerant Flow) systems are known for flexibility and efficiency. The technology adjusts the refrigerant volume in the system based on the precise cooling or heating needs of each zone.
Unlike traditional air conditioning systems that have a single, fixed-speed compressor, a VRV/F system utilises multiple compressors that can vary their speed. This allows for simultaneous heating and cooling in different areas, providing a customised climate control solution for diverse spaces within a building.
-
Air Conditioning (cooling)
-
Monovalent (single source) heating
-
Fresh air treatment through own units or external air handling units
-
Air curtains
ENERGY EFFICIENT
R32 SYSTEMS
R-32 efficiently conveys heat and can reduce electricity consumption up to approximately 10% compared to that of air conditioners using refrigerant R-22. Compared to the refrigerants R-22 and R-410A, R-32 has a global warming potential (GWP) that is one-third lower and is renowned for its low environmental impact.
-
Easily integrated in various control configurations:
-
Individual control of every indoor unit
-
Centralized control and remote monitoring
WHAT IS R32?
R-32 is the most balanced refrigerant in terms of environmental impact, energy efficiency, safety, and cost-effectiveness.
Refrigerant is a medium for conveying heat.
Air conditioners transfer heat while circulating refrigerant between the indoor and outdoor units.
Although there are various types of refrigerants, R-32 is a balanced refrigerant currently receiving attention.
Because R-32 efficiently conveys heat, it can reduce electricity consumption up to approximately 10% compared to that of air conditioners using refrigerant R-22. Furthermore, compared to the refrigerants widely used today such as R-22 and R-410A, R-32 has a global warming potential (GWP) that is one-third lower and is remarkable for its low environmental impact.
*Source:
Values for 100 year global warming potential (GWP) from IPCC Fourth Assessment Report. Comparative 100 year GWP: HFC410A, 2,090; HFC32, 675.
ENERGY EFFICIENT
INDOOR UNITS
For Heating & Cooling
VRV (Variable Refrigerant Volume) and VRF (Variable Refrigerant Flow) systems are known for flexibility and efficiency. The technology adjusts the refrigerant volume in the system based on the precise cooling or heating needs of each zone.
Unlike traditional air conditioning systems that have a single, fixed-speed compressor, a VRV/F system utilises multiple compressors that can vary their speed. This allows for simultaneous heating and cooling in different areas, providing a customised climate control solution for diverse spaces within a building.
Slim concealed ceiling unit: FXAA-A (R32)
-
Optimised design for R-32 refrigerant
-
Compact dimensions, can easily be mounted in a ceiling void of only 240mm
-
Medium external static pressure up to 44Pa facilitates unit use with flexible ducts of varying lengths
-
Discretely concealed in the wall: only the suction and discharge grilles are visible
-
Auto cleaning filter option ensures maximum efficiency, comfort and reliability by regular filter cleaning
-
15 class unit especially developed for small or well-insulated rooms, such as hotel bedrooms, small offices, etc.
-
Flexible installation, as the air suction direction can be altered from rear to bottom suction
-
Standard drain pump with 600mm lift increases flexibility and installation speed
Wall Mounted: FXAA-A (R32)
-
Optimised design for R-32 refrigerant
-
Flat, stylish front panel blends easily within any interior décor and is easier to clean
-
Can easily be installed in both new and refurbishment projects
-
The air is comfortably spread up- and downwards thanks to 5 different discharge angles that can be programmed via the remote control
-
Maintenance operations can be performed easily from the front of the unit
MULTI-ZONE CONTROL
With multi-zone control, you can precisely adjust the climate in different floors and rooms.
Designed with whisper-quiet technology, a Daikin VRV system operates so silently that you’ll hardly notice it’s there.
Multi split systems can include:
-
Wall Mounted Air Conditioning
-

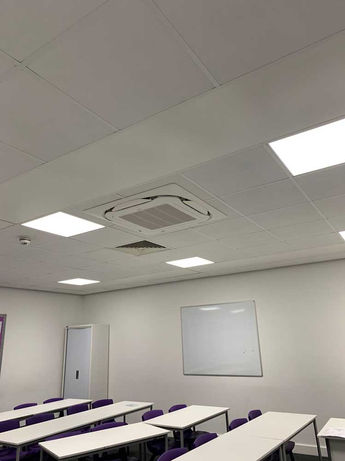

Ceiling Air Conditioning
-
Floor Standing Air Conditioning
-
Ducted Air Conditioning
HVAC SYSTEMS FOR COMMERCIAL PROPERTIES
TESTIMONIALS
HVAC INSTALLATION
As a trusted business partners of Daikin UK, you can be assured that Cold Control will deliver high standards of expertise. When it comes to installations, Cold Control works closely with clients to understand their specific requirements and design customised HVAC solutions that maximise efficiency and minimise energy consumption. Our technicians are up to date with the latest technologies and industry standards, ensuring that installations are carried out with precision and attention to detail.
Strategically positioned in Hampshire, Cold Control provides installation services across, Hampshire, Surrey, London and throughout the South.
SERVICES FOR HVAC SYSTEMS
Design
We will discuss your requirements and select the HVAC system most suitable for your building whilst considering your interiors finishes, budget and any pre-existing systems in place.
There is no one system fits all, but we will find a way to fulfil your requirements and deliver outstanding air quality.
Installation
No project is too big or too small. We can provide a wide variety of solutions tailored specifically to your business and install them with minimal disruption.
As accredited installers for the world's leading manufacturers, Cold Control provide cutting-edge solutions offering the greatest energy efficiency.
Maintenance
Regular maintenance is vital to keep your HVAC systems in the best possible condition. To ensure your system operates at optimum efficiency we provide a maintenance program tailored to budget, which entitles you to a guaranteed 24-hour emergency repair service in the unlikely event of breakdowns
